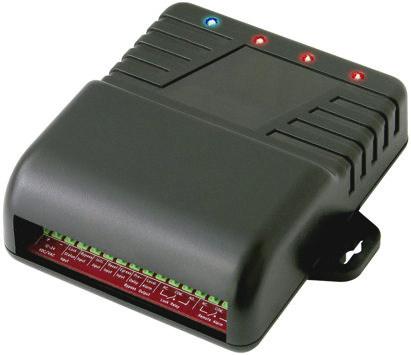

SA-025EQ ENFORCER Delayed Egress Timer

Model[SA-025EQ]


  • 12~24 VDC Operation.
  • 3 Relock modes to meet different installation requirements:
    • Standard manual relocking,
    • BOCA (Building Officials Code Administrators) relocking,
    • Timed relocking (1~60 seconds).
  • Programmable nuisance delay timer (0~3 seconds).
  • Adjustable pre-delay timer (1~30 seconds).
  • Adjustable post-delay timer (1~60 seconds).
  • Selectable manual or automatic relocking after power loss.
  • Lock relay output (Form C, 10A@24VDC).
  • Remote alarm relay output (Form C, 10A@24VDC).
  • Local alarm output (transistor ground, 500mA@12VDC).
  • Door status input.
  • Status LEDs show relay status.
  • Bypass input immediately releases locks.
  • Free egress input allows easy exit during the delay.
Operating voltage12~24 VAC/VDC
Current drawStandby1120mA@12VDC
Pre-delay90mA@12VDC
Local alarm35mA@12VDC
Timer module only2  15mA@12VDC
Lock control output10A@24VDC, Form C, NO/NC/COM
Remote alarm output10A@24VDC, Form C, NO/NC/COM
Local alarm outputTransistor ground, 500mA@12VDC


1Lock relay and remote alarm relay are normally energized.
2When lock relay and remote alarm relay are de-energized.

Download Data Sheet HERE
