Request to Exit

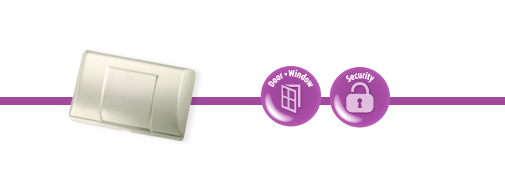

DA-5

PIR Detector for Automatic Door Control

DA-5 is a passive infrared motion detector designed for use with access control and automatic door opening systems. When motion is detected, the DA-5 relay output provides signals activating the door opening mechanism. For maximum flexibility, the output activation time is user adjustable between 1 and 60 seconds.

DA-5 is designed for easy installation, with options for over-the-door wall mounting or ceiling mounting. Operating power can be supplied from a 12V or 24V AC/DC power source.

DA-5 Features:

• Compatible with access control systems and automatic door opening systems
• 3 detection zones with 7 beams per zone
• 1C / 2 Amp output relay
• User-adjustable relay activation time (1-60 seconds)
• Over-the-door wall mounting or ceiling mounting options
• 12 / 24 Volt AC/DC power supply

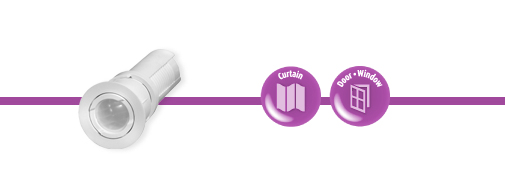

Spy 4

Inconspicuous Miniature Curtain PIR

Spy 4 is the world's smallest detector offering inconspicuous curtain protection for corridors, passageways, doors and windows as well as support for access control, CCTV and various other control applications. It can be flush-mounted in a wall or ceiling or installed from behind the wall or the ceiling, providing a solid-curtain coverage of up to 2m width x 4m height (6 x 12ft).

Despite its miniature size, the Spy 4 detector achieves full-size performance by implementing state-of-the-art detection technologies. Backed by 30 years of Visonic expertise, Spy 4 offers industry-leading sensitivity and reliability levels while virtually eliminating false alarms.

Spy 4 is ideal for perimeter protection, securing corridors, doors, windows and skylights as well as controlling CCTV, access control and other systems. It is designed for trouble-free ceiling or wall mounting. Mounted so only the miniature lens is visible, the Spy 4 detector is virtually unnoticeable after installation.

Spy 4 Features:

• Virtually unnoticeable after mounting
• Designed for securing corridors, doors, windows or skylights
• Ideal for controlling CCTV, access control and other systems
• Ceiling or wall mounting
• Tiny size: Diameter: 19 mm (0.75 in) Length: 70 mm (2.75 in)
• Solid curtain detection pattern
• Range: 2m width x 4m height (6 x 12ft)
• Exceptionally high reliability and false alarm immunity
• RF protection up to 1000 MHz
• 10-14 VDC power supply
• Fast and easy installation (collar, front/rear mounting plate)
