PIR - Miniature

Clip

Wide-angle Micro-PIR Detector

Clip is the world's smallest, most inconspicuous detector, packing into its small elegant housing all the performance of a full-size PIR. This miniature detector is virtually unnoticeable after mounting.  It provides full detection capabilities for areas up to 9m x 13.5m (30 x 45ft) and is ideal for  protecting rooms in residential and light commercial applications.

Clip implements state-of-the-art detection technologies backed by 30 years of Visonic expertise. It offers industry-leading sensitivity and reliability levels while virtually eliminating false alarms.

Clip is equipped with a two-step selectable alternate polarity pulse counter for high false-alarm protection. It also features 12^o vertical adjustment and a switchable walk-test LED to ensure accurate pattern coverage.

Easy wall and corner mounting, miniature size and attractive design make Clip ideal for any home or office application where performance, small size and aesthetics are important considerations.

Clip Features:

• Inconspicuous high-performance PIR
• Miniature size 7 x 2.8 x 2.5cm (2.75 x 1.25 x 1 in)
• Attractive design
• Maximum coverage area: 9 x 13.5m (30 x 45ft) / 100^o
• Exceptionally high reliability and false alarm immunity
• Alternate polarity pulse counter
• Enhanced 20V/m RFI immunity
• 12^o vertical adjustment
• Switchable walk-test LED
• Tamper switch
• Wall-mount and corner installation

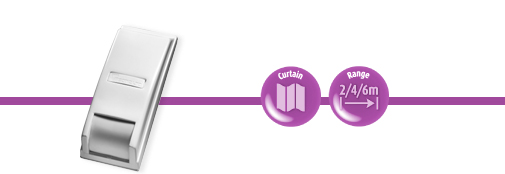

Clip 4N

Solid-curtain Micro-PIR Detector

Clip-4N is the world's smallest, most inconspicuous digital curtain detector, packing into its small elegant housing all the performance of a full-size curtain PIR. Designed for virtually unnoticeable perimeter protection of openings such as doors, windows and corridors, as well as for CCTV and access control, Clip-4N provides adjustable solid-curtain coverage of up to 3.6 x 6m (12 x 20ft).

Clip-4N implements a complete new generation of patented technologies including FM Digital Signal Processing (FM-DSP) and "True Motion Recognition"^™ using Fuzzy Logic algorithm (TMR), resulting in excellent catch performance with virtually no false alarms.

Easy mounting, adjustment-free design, miniature size and attractive housing make Clip-4N the ideal curtain detector for any home or office application where performance, miniature size and aesthetics are important considerations.

Clip-4N Features:

• Inconspicuous high-performance solid-curtain PIR
• Designed for securing corridors, doors, windows or sky lights
• Ideal for controlling CCTV, access control and other systems
• Miniature size 7 x 2.8 x 2.5cm (2.75 x 1.25 x 1 in)
• Attractive elegant design
• Maximum coverage area: 3.6 x 6m (12 x 20 ft)
• Easy customization according to size of secured opening: 2, 4, 6m ( 6, 12, 20 ft)
• Long-term stability and reliability thanks to advanced patented true digital FM processing
• Ultimate false alarm immunity based on patented True Motion Recognition
• Enhanced 20V/m RFI immunity
• Switchable walk-test LED
• Tamper switch
• Solid-state relay for silent trouble free operation up to 100mA and 30 Volt

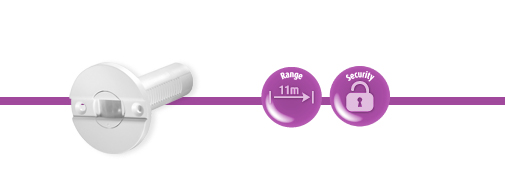

Spy 1

Inconspicuous Long-range Miniature PIR

Spy 1 is the world's smallest detector offering inconspicuous protection for corridors and passageways as well as control of CCTV, access control and similar systems. It can be flush-mounted in a wall or installed from behind the wall, providing a single, double beam with coverage of up to 11m/17^o (35ft/17^o).

Despite its miniature size, the Spy 1 detector achieves full-size performance by implementing state-of-the-art detection technologies. Backed by 30 years of Visonic expertise, Spy 1 offers industry-leading sensitivity and reliability levels while virtually eliminating false alarms.

Spy 1 is the ideal device for perimeter protection; securing of corridors, doors and windows; and control of CCTV, access control and other systems. It is installed so only the miniature lens is visible – rendering the detector virtually unnoticeable.

Spy 1 Features:

• Virtually unnoticeable after mounting
• Ideal for security, access control, CCTV and other systems
• Can be installed in the wall or from behind the wall
• Tiny size: Diameter: 19 mm (0.75 in) Length: 70 mm (2.75 in)
• Range: 11m/17^o (35ft/17^o)
• Exceptionally high reliability and false alarm immunity
• RF protection up to 1000 MHz
• 10-14 VDC power supply
• Fast and easy installation (collar, front/rear mounting plate)

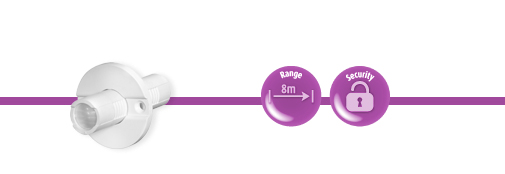

Spy 2

Inconspicuous Medium-angle Miniature PIR

Spy 2 is the world's smallest detector offering inconspicuous protection for rooms, wide corridors and passageways as well as control of security, CCTV and other systems. It can be flush-mounted in a wall or installed from behind the wall, providing a coverage of three double beams in a single detection layer, with a maximum coverage area of 8m/50^o (25ft/50^o).

Despite its miniature size, the Spy 2 detector achieves full-size performance by implementing state-of-the-art detection technologies. Backed by 30 years of Visonic expertise, Spy 2 offers industry-leading sensitivity and reliability levels while virtually eliminating false alarms.

Designed for ease of use, Spy 2 is easily installed in any home, office or other commercial environment. It is installed so only the miniature lens is visible – rendering the detector virtually unnoticeable.

Spy 2 Features:

• Virtually unnoticeable after mounting
• Ideal for security, CCTV and control applications
• Can be installed in the wall or from behind the wall
• Tiny size: Diameter: 19 mm (0.75 in) Length: 70 mm (2.75 in)
• Range: 8m/50^o (25ft/50^o)
• Three double beams in a single detection layer
• Exceptionally high reliability and false alarm immunity
• RF protection up to 1000 MHz
• 10-14 VDC power supply
• Fast and easy installation (collar, front/rear mounting plate)

Spy 3

Concealed Wide-angle Miniature PIR

Spy 3 is the world's smallest detector offering concealed protection for rooms and supporting various other control and access applications. It is flush-mounted in a wall, providing coverage of six double-beams in a single detection layer, with a maximum coverage area of 8m/100^o (25ft/100^o).

Despite its miniature size, the Spy 3 detector achieves full-size performance by implementing state-of-the-art detection technologies. Backed by 30 years of Visonic expertise, Spy 3 offers industry-leading sensitivity and reliability levels while virtually eliminating false alarms.

Designed for ease of use, Spy 3 is easily installed in any home, office or other commercial environment. It is installed so only the lens is visible – rendering the detector virtually unnoticeable.

Spy 3 Features:

• Virtually concealed after mounting
• Ideal for security, CCTV and control applications
• Tiny size: Diameter: 19 mm (0.75 in) Length: 70 mm (2.75 in)
• Range: 8m/100^o (25ft/100^o)
• Six double beams in a single detection layer
• Exceptionally high reliability and false alarm immunity
• RF protection up to 1000 MHz
• 10-14 VDC power supply
• Fast and easy installation

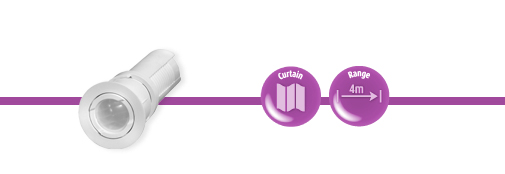

Spy 4

Inconspicuous Miniature Curtain PIR

Spy 4 is the world's smallest detector offering inconspicuous curtain protection for corridors, passageways, doors and windows as well as support for access control, CCTV and various other control applications. It can be flush-mounted in a wall or ceiling or installed from behind the wall or the ceiling, providing a solid-curtain coverage of up to 2m width x 4m height (6 x 12ft).

Despite its miniature size, the Spy 4 detector achieves full-size performance by implementing state-of-the-art detection technologies. Backed by 30 years of Visonic expertise, Spy 4 offers industry-leading sensitivity and reliability levels while virtually eliminating false alarms.

Spy 4 is ideal for perimeter protection, securing corridors, doors, windows and skylights as well as controlling CCTV, access control and other systems. It is designed for trouble-free ceiling or wall mounting. Mounted so only the miniature lens is visible, the Spy 4 detector is virtually unnoticeable after installation.

Spy 4 Features:

• Virtually unnoticeable after mounting
• Designed for securing corridors, doors, windows or skylights
• Ideal for controlling CCTV, access control and other systems
• Ceiling or wall mounting
• Tiny size: Diameter: 19 mm (0.75 in) Length: 70 mm (2.75 in)
• Solid curtain detection pattern
• Range: 2m width x 4m height (6 x 12ft)
• Exceptionally high reliability and false alarm immunity
• RF protection up to 1000 MHz
• 10-14 VDC power supply
• Fast and easy installation (collar, front/rear mounting plate)
