Photoelectric Beam

VMX-100

Compact Photoelectric Beam

VMX-100 is a compact low profile photoelectric detector suitable for a wide variety of residential and commercial applications up to 8m (25ft) outdoor or 30m (100ft) indoor. It is the ideal low-cost device for short-range application such as protection of gates, windows, verandas, or detection access to restricted zones in museums, galleries, laboratories, stock rooms, manufacturing facilities, etc.

Its simple installation and alignment procedure ensures maximum performance, reliability and false alarm immunity, even in extreme weather conditions.

VMX-100 Features:

• Detection based on a single IR beam
• Maximum range 30m (100 ft) indoors, 8m (25 ft) outdoors
• Rugged all-weather design (IP45)
• Easy and precise beam alignment thanks to a built-in test point
• Outstanding reliability and false alarm immunity
• Tamper protection for transmitter and receiver units
• -20^oC to 55^oC (-4^oF to 131^oF) operating temperatures
• 12-24V AC/DC power supply

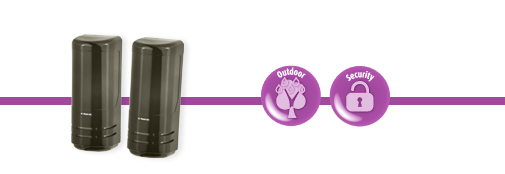

VMX-150D

Photoelectric Dual-beam System

VMX-150D is a rugged dual-beam photoelectric detector designed for a wide variety of outdoor and indoor residential, commercial and industrial applications up to 25m (80 ft) outdoor or 50m (165 ft) indoor. It provides ideal cost-effective solutions for medium-range applications such as perimeter protection of buildings, fences, warehouses, factories, parking lots, gardens, walls, etc.

VMX-150D is engineered to provide many years of trouble-free reliable operation, with outstanding false alarm immunity, in virtually all weather conditions including snow, rain and fog.

Dual-beam design provides the redundancy needed to prevent false alarms from objects (flying birds, insects, falling leaves, etc.) that may intersect one of the IR beams. The alarm output is activated only when both beams are interrupted.

VMX-150D is very easy to install and align. It is supplied with accessory kits for wall and pole mounting. Built-in viewfinder and test point enable quick and precise alignment of the IR beams.

VMX-150D Features:

• Operating range: 25m/80 ft (outdoor), 50m /165ft (indoor)
• Dual-beam design prevents false alarms from flying birds, insects, falling leaves, etc
• Engineered for virtually all weather conditions including snow, rain and fog
• Outstanding reliability and false alarm immunity
• Easy and precise beam alignment thanks to built-in view finder
• Quick and easy installation
• Concealed alignment: ± 5^o vertical / ± 90^o horizontal

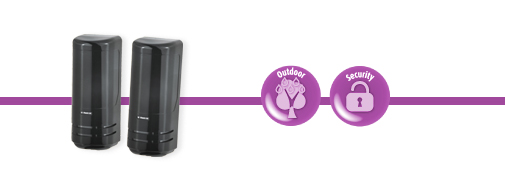

VMX-300D

Photoelectric Dual-beam System

VMX-300D is a rugged dual-beam photoelectric detector designed for a wide variety of outdoor and indoor residential, commercial and industrial applications up to 50m (165 ft) outdoor or 100m (325 ft) indoor. It provides ideal cost-effective solutions for medium to long-range applications such as perimeter protection of buildings, fences, warehouses, factories, parking lots, gardens, walls, etc.

VMX-300D is engineered to provide many years of trouble-free reliable operation, with outstanding false alarm immunity, in virtually all weather conditions including snow, rain and fog.

Dual-beam design provides the redundancy needed to prevent false alarms from objects (flying birds, insects, falling leaves, etc.) that may intersect one of the IR beams. The alarm output is activated only when both beams are interrupted.

VMX-300D is very easy to install and align. It is supplied with accessory kits for wall and pole mounting. Built-in viewfinder and test point enable quick and precise alignment of the IR beams.

VMX-300D Features:

• Operating range: 50m/165 ft (outdoor), 100m /325ft (indoor)
• Dual-beam design prevents false alarms from flying birds, insects, falling leaves, etc
• Engineered for virtually all weather conditions including snow, rain and fog
• Outstanding reliability and false alarm immunity
• Easy and precise beam alignment thanks to built-in view finder
• Quick and easy installation
• Concealed alignment: ± 5^o vertical / ± 90^o horizontal
• Accessory kits provided for wall and pole mounting
• Tamper protection for transmitter and receiver unit
• -20^oC to 55^oC (-4^oF to 131^oF) operating temperatures
• 12-24 VDC power supply

VMX-450D

Photoelectric Dual-beam System

VMX-450D is a rugged dual-beam photoelectric detector designed for a wide variety of outdoor and indoor residential, commercial and industrial applications up to 75m (250 ft) outdoor or 150m (500 ft) indoor. It provides ideal cost-effective solutions for medium to long-range applications such as perimeter protection of buildings, fences, warehouses, factories, parking lots, gardens, walls, etc.

VMX-450D is engineered to provide many years of trouble-free reliable operation, with outstanding false alarm immunity, in virtually all weather conditions including snow, rain and fog.

Dual-beam design provides the redundancy needed to prevent false alarms from objects (flying birds, insects, falling leaves, etc.) that may intersect one of the IR beams. The alarm output is activated only when both beams are interrupted.

VMX-450D is very easy to install and align. It is supplied with accessory kits for wall and pole mounting. Built-in viewfinder and test point enable quick and precise alignment of the IR beams.

VMX-450D Features:

• Operating range: 75m/250 ft (outdoor), 150m /500ft (indoor)
• Dual-beam design prevents false alarms from flying birds, insects, falling leaves, etc
• Engineered for virtually all weather conditions including snow, rain and fog
• Outstanding reliability and false alarm immunity
• Easy and precise beam alignment thanks to built-in view finder
• Quick and easy installation
• Concealed alignment: ± 5^o vertical / ± 90^o horizontal
