Stand-alone Professional Light Control PIR Detector
GL-1 is a professional stand-alone outdoor motion
detector for light control applications. Using a 110-240VAC supply, and
employing a special heavy-duty power relay, the GL-1
directly controls various types of lighting devices with a maximum load
of 2kW. It is typically used to deter intruders, welcome guests, promote
personal safety, and reduce security lighting costs.
GL-1 provides three layers of detection zones, with a maximum coverage of 12 x 12m (40 x 40 ft) / 90o. Thanks to its built-in swivel bracket design, the GL-1 detection pattern can be easily directed to the desired position, providing outstanding flexibility and ease of installation.
Further adjustment of the detection pattern is provided by a built-in range control. Offering 90o; coverage and a special mechanical design, the GL-1 is ideally suited for corner-mount installation. The Gl-1
allows users to select the length of time the lights will operate, from
4 seconds to 5 minutes. The lights are re-lit each time motion is
detected, remaining lit with no interruption if motion is continuous.
Users can operate the lights manually while the GL-1 is in operation.
In addition, the GL-1 has a day/night photocell sensor
designed to enable the unit to operate during dark periods only. A light
level control allows users to easily select the ambient light
conditions at which the GL-1 will automatically operate, including fully lit periods.
Offering sleek elegant design, durable construction and weather resistance, the GL-1 is easily integrated in a wide variety of indoor and outdoor applications.
GL-1 Features:
Stand-alone operation with 110-240 VAC power supply
Heavy-duty power relay can directly control multiple lighting devices up to 2kW
Operates lights for a user-selectable time span (4 seconds-5 minutes) when motion is present
Supports manual operation of lights
Day/night photocell sensor for operation only during dark periods
High-performance PIR for reliable motion detection
Coverage area: 12 x 12m (40 x 40ft) / 90o with range adjustment control
Mounting height: 2-4.5m (7-15ft)
Integral swivel bracket simplifies installation and offers greater control of the detection pattern
Blends seamlessly into any indoor/outdoor d?ecor
Weather resistant
Durable sleek and elegant design

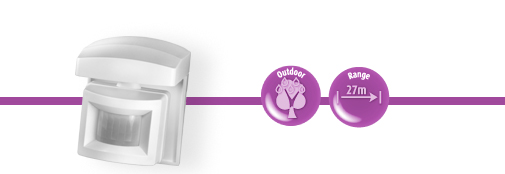

GL-2
Stand-alone Professional Light Control PIR Detector
GL-2 is a professional stand-alone outdoor motion
detector for light control applications with a long range of 27m (90ft).
Using a 110-240VAC supply, and employing a special heavy-duty power
relay, the GL-2 directly controls various types of
lighting devices with a maximum load of 2kW. It is typically used to
deter intruders, welcome guests, promote personal safety, and reduce
security lighting costs.
GL-2 provides a single layers of detection zone, with a maximum coverage of
27 x 3m (90 x 10ft). This lens is specially designed for long range and
narrow areas such as walkways and long walls. Further adjustment of the
detection pattern is provided by a built-in range control. Offering 90o coverage and a special mechanical design, the GL-2 is ideally suited for corner-mount installation.
GL-2 allows users to select the length of time the
lights will operate, from 4 seconds to 5 minutes. The lights are re-lit
each time motion is detected, remaining lit with no interruption if
motion is continuous. Users can operate the lights manually while the GL-2 is in operation.
In addition, the GL-2 has a day/night photocell sensor
designed to enable the unit to operate during dark periods only. A light
level control allows users to easily select the ambient light
conditions at which the GL-2 will automatically operate, including fully lit periods.
Offering sleek elegant design, durable construction and weather resistance, the GL-2 is easily integrated in a wide variety of indoor and outdoor applications.
GL-2 Features:
Stand-alone operation with 110-240 VAC power supply
Heavy-duty power relay can directly control multiple lighting devices up to 2kW
Operates lights for a user-selectable time span (4 seconds-5 minutes) when motion is present
Supports manual operation of lights
Day/night photocell sensor for operation only during dark periods
High-performance PIR for reliable motion detection
Coverage area: 27 x 3m (90 x 10ft) / 90o with range adjustment control
Mounting height: 1.6-2.5m (5-8ft)
Integral swivel bracket simplifies installation and offers greater control of the detection pattern
Blends seamlessly into any indoor/outdoor d?ecor
Weather resistant
Durable sleek and elegant design
GL-3
Stand-alone Professional Light Control PIR Detector
GL-3 is a professional stand-alone outdoor motion detector for light control applications with an ultra-wide angle of 145o. Using a 110-240VAC supply, and employing a special heavy-duty power relay, the GL-3
directly controls various types of lighting devices with a maximum load
of 2kW. It is typically used to deter intruders, welcome guests,
promote personal safety, and reduce security lighting costs.
GL-3 provides three layers of detection zones, with a maximum coverage of 12 x 18m (40 x 60ft) / 145o. Thanks to its built-in swivel bracket design, the GL-3 detection pattern can be easily directed to the desired position, providing outstanding flexibility and ease of installation.
Further adjustment of the detection pattern is provided by a built-in range control. Offering 90o coverage and a special mechanical design, the GL-3 is ideally suited for corner-mount installation.
GL-3 allows users to select the length of time the
lights will operate, from 4 seconds to 5 minutes. The lights are re-lit
each time motion is detected, remaining lit with no interruption if
motion is continuous. Users can operate the lights manually while the GL-3 is in operation.
In addition, the GL-3 has a day/night photocell sensor designed to
enable the unit to operate during dark periods only. A light level
control allows users to easily select the ambient light conditions at
which the GL-3 will automatically operate, including fully lit periods.
Offering sleek elegant design, durable construction and weather resistance, the GL-3 is easily integrated in a wide variety of indoor and outdoor applications.
GL-3 Features:
Stand-alone operation with 110-240 VAC power supply
Heavy-duty power relay can directly control multiple lighting devices up to 2kW
Operates lights for a user-selectable time span (4 seconds-5 minutes) when motion is present
Supports manual operation of lights
Day/night photocell sensor for operation only during dark periods
High-performance PIR for reliable motion detection
Coverage area: 12 x 18m (40 x 60ft) / 145o with range adjustment control
Recommended mounting height for best detection: 2-3m (7-10ft)
Integral swivel bracket simplifies installation and offers greater control of the detection pattern
Blends seamlessly into any indoor/outdoor d?ecor
Weather resistant
Durable sleek and elegant design
