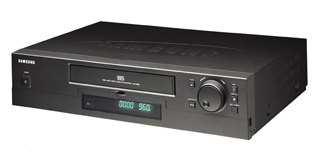

 SRV-960
KEY FEATURES
L6H, L18H and L30H Recording at T-120H L8H, L24H and L40H Recording
at T-160H Additionally 72H, 120H, 168H, 240H, 480 and 960H Recording
at T-120 (in SRV-960P)
Super Clear and Natural Picture Resolution of Real Time VCR is Improved
to Show Over 300 TV Lines in Color and Over 350 TV Lines in Black
and White
Audio Recording and Playback in the L18H, and L30H Linear Mode are
Possible as Well as in the L6H Mode
Alarm Rec/Recall/Search Functions for Further Operating Convenience
Built-In Time and Date Generator Allows Time and Date Information
to be Displayed Along With the Alarm Count and Recording/Playback
Speed
When End of Tape Is Reached, a Pulse Is Initiated That Can Be Used
to Start Another Recorder
Auto Play, Auto Power On
Free-Voltage Power Supply : This Unit Adjusts Automatically To Any
Input Voltage From 100 to 240V AC.
|

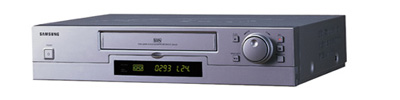

 SSLV-960
KEY FEATURES
Recording Functions
Alarm Recording : When An Alarm Signal Is Received, The Recording
Mode Is Automatically Switched to 2H/L12H/L24H Mode.
Repeat Recording : During Recording The Tape Reaches At Its End,
It Is Automatically Rewound To The Beginning and The Recording Is
Re-started.
Series Recording : Two or More SLV Series VCRs Can Be Cascaded Via
Series In/Out Connectors To Extend The Total Recording Time.
Program Recording : With This Function, The User Can Preset To Either
Weekly Base Or Daily Base. In Weekly Recording Mode, 10 Events a
Week Can Be Programmed. Daily Recording Mode Enables a Recording
To Be Made At Everyday Same Time.
1-Shot Recording : When Time Mode Set 000H and This Function Is
Selected, The User Can Record One Frame Every 1/2/3 Minute.
Wide Variety Of Recording Modes
SLV-24 : 2H, L12H, L24H
SLV-960 : 2H, L12H, L24H, 36H, 48H, 72H, 120H, 168H, 240H, 480H,
960H
High Quality Recording
Clear and Natural Picture : Over 300TVL In Color and 350TVL in B/W
Field Recording/Field Advanced Playback : By Using These Functions,
the User Gets Twice Recorded Information That Can Be Attained With
the Conventional Frame Recording.
Audio Recording and Playback : Audio Signal Can Be Recorded At 2H/L12H/L24H
Recording Modes.
Reliability & Safety
Record Lock Function : When This Function Is Selected, No Button
Can Be Entered. With This Function, The User Can Keep From Mishandling
of the Unit.
Power Loss Memory : By Using This Function, the User Can Check Power
Failure and Recovery Time.
Record Check : When "REC CHECK" Button Is Pressed the
Tape Is Rewound For 2~3 Seconds and the Playback. With This Function,
the User Can Check the Recording quality.
Operating Time Check : The Operating Time of the Unit Can Be Checked
For Timely Maintenance.
Easy Operation
On-Screen Display Menu : By Using OSD, the User Easily Sets Time,
Recording Mode and So On.
JOG/Shuttle : The User Easily Adjusts the Playback Speed With the
Shuttle and Search For An Image Field By Field With the JOG.
Built-In Time/Date Generator : It Allows Time and Date Information
To Be Superimposed Onto Incoming Video Signals.
|
