Seco-Larm

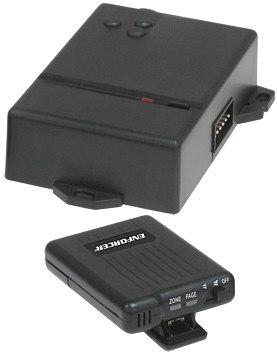

E-37EV Alarm Pager System

Model[E-37EV]


Replaces SECO-PAGE 35 Series

  • Monitors up to three zones per premises or vehicle, plus manual paging.
  • Connect to nearly any type of burglar alarm control panel, vehicle alarm, communications panel, etc.
  • One positive and two negative instant trigger inputs.
  • Range: One half mile* (4W output).
  • Over two million possible coding combinations.
  • Belt-clip receiver included.
  • Code-learning receiver learns up to three transmitters.
  • Color LEDs on the receiver indicate which zone (Green, Orange, or Red) of the premises or vehicle was triggered.
  • Audible or vibration page indicator.
  • EEPROM memory stores codes for up to one year without power.
  • Stores the last six pages for easy recall.
  • Unattended page indicator.
  • Low battery indicator.
  • Uses two AAA batteries (not included).
  • Extra vibrating receiver available (E-37RV).
  • Connect to a CB antenna, car AM radio antenna (cable included), or optional external antenna (E-37ANT).*

*Note: Antenna required. Antenna not included.



ModelE-37EV Transmitter
Number of codesOver 2 million (factory pre-set)
Operating voltage12VDC
Current drawStandby10mA@24VDC
Active1A
Temperature14º ~ 131º F (-10º ~ 55º C)
RF Frequency27MHz
Antenna impedance50Ω
RangeUp to ½ mile in open air1
Dimensions4-1/8"x3-1/8"x15/16" (105x79x33 mm)
Weight5.1-oz (145g)


1 Actual range may vary depending on the environment, installation, and/or antenna.

ModelE-37EV Receiver
Number of codesLearns up to 3 transmitter codes
Operating voltage3VDC (2 AAA bateries
Current drawStandby1m
Active20mA
Temperature14º ~ 131º F (-10º ~ 55º C)
Dimensions3"x2-1/8"x5/8" (76x54x16 mm)
Weight1.6-oz (45g) (without battery)2

2 Batteries not included.
Hardware Features


ModelE-37EV Transmitter only
Alarm trigger or manual page zone indicatorColor LEDs (Green, Orange, Red)
Alarm page or car/premises indicator displayColor LEDs (Green, Orange, Red)
Low battery indicatoryes
Power antenna indicatorYes
VibrateYes


Download Data Sheet HERE
