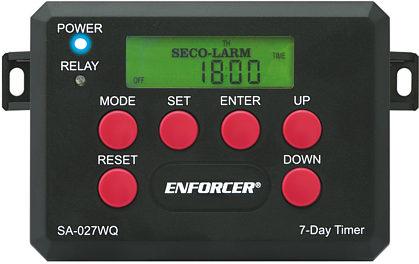

SA-027WQ 7-Day Timer

Model[SA-027WQ]


  • Enclosed terminals for a safer installation.
  • 12~24 VAC / VDC Operation.
  • Up to 60 programmable events.
  • Holiday function (up to 99 days).
  • Easy-to-read backlit LCD.
  • Adjustable output time.
  • Programmable security code.
  • 12 or 24-Hour clock format.
  • 16 Schedules including daily, weekly, weekends, etc.
  • Memory saved if power fails.
  • Form C relay output (10A@120VAC/28VDC).
  • Egress input terminal.
  • Mode selection button for manual relay operation.
Operating voltage12~24 VAC/VDC
Current drawStandby15mA@12VDC
Active70mA@12VDC
Relay rating10A@120VAC / 28VDC
Backup battery1 x CR-2016 (included)
Weight4.6-oz (130g)
Dimensions4-3/16"x3-1/16"x1-1/4" (107x78x31 mm)

Download Data Sheet HERE
