Click image to enlarge
Seco-Larm

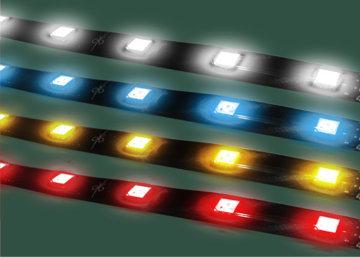

ENFORCER Ultrabright LED Strips

Model[SL-S212-RAQ - Red, S]


Description:
  • Flexible LED Strip easily installs anywhere.
  • Can be cut every 3 LEDs.
  • Energy efficient - only 2.4W.
  • Gold-plated connector for reliability.
  • Connect up to 30 strips in series.
  • Self-adhesive backing for easy installation.
  • Wide 120° beam spread.
  • Reverse polarity protection.
  • Three brightness levels.
  • Each unit comes with one LED Strip and one 4-pin LED Adapter.
  Applications:
  • Visual signaling.
  • Fence and gate lighting.*
  • Stairway and security lighting.
  • Accent lighting on vehicles, doorways, cabinets, etc.**
  • Lighting under counters and bars.
  • Display and tradeshow lighting.
  • Home entertainment rooms.
*Connectors must be housed or epoxied for outdoor use.
**Consult local laws before installing on vehicles.

  Specifications:
Operating voltage12VDC
Current draw per LED strip200mA@12VDC
Current draw per 3-LED segment  50mA@12VDC
Dimensions12"x7/16" (305x10 mm)
Number of LEDs12
Distance between LEDs1" (25mm)
Operating temperature-5°~115° F (-20°~45° C)
Weight0.4-oz (11.4g)


  LED Specifications
ModelColorColor temp / WavelengthLumen output
SL-S212-WAQWhite2500°~3500° K1200~2000 mcd
SL-S212-BAQBlue465~475 nm400~500 mcd
SL-S212-RAQRed620~635 nm950~1050 mcd
SL-S212-YAQYellow585~595 nm950~1050 mcd

Download Data Sheet HERE


Quantity:
