Seco-Larm

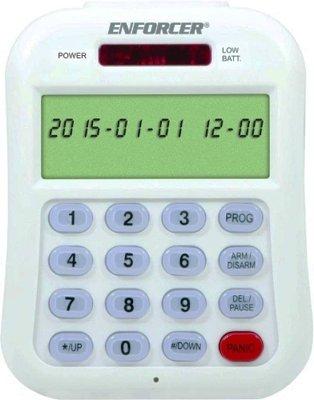

Auto Dialer for Security Systems

Model[E-921APQ]


When triggered by an alarm system, the ENFORCER Auto Dialer can call up to 5 numbers and deliver a beep alert repeatedly for one minute. The receiver can then listen in to the room occupants or can disarm the system. The dialer includes a home mode (acting like a door chime when the owner is present) and a panic button. The 105dB built-in siren alarm can be programmed on or off.

  • 16-Digit large display with date/time and function icons.
  • 2 (N.C.) Triggers for multiple zone security.
  • Remote monitoring — user can call in to listen in to room sounds and arm/disarm dialer.
  • Remotely listen in to room sounds or disarm during call back.
  • Programmable PIN number and entry delay timing.
  • 5 Programmable emergency telephone numbers (up to 32 digits each).
  • Programmable auto-dialing cycle repeat times.
  • Home mode function (acts as a door chime when user is at home).
  • Panic button.
  • Built-in flash memory to protect against system data loss in case of power failure.
  • Touch-Tone dialing.
  • Phone jack.
  • Low-battery indicator for backup battery (battery not included).
  • DC power input jack (3.5mm phone jack, not included).
  • 9V battery backup (battery not included).
  • Wall-mountable.
  • Built-in 105dB alarm (with programmable alarm on/off).
  • Built-in auxiliary output for external alarm or siren.
Operating Voltage9~12VDC
Current draw max. (at 12VDC)Standby5mA
Dialing10mA
Alarm On180mA
Total310mA
Programmable emergency phone numbers5
Maximum digits per telephone number32
Backup battery type/life (not included)9VDC / ~20hr
Alarm sound level at 12" (30cm)≥105dB
Trigger Inputs2 x N.C. Trigger
Trigger input timer≥500ms
Auxiliary output current (max)125mA
Operating Temperature32º~+104º F (0º~40º C)
Storage Temperature-4º~140º F (-20º~+60º C)
Weight6.2-oz (175g)
Dimensions33/8"x45/16"x17/8" (86x110x47 mm)



Download Data Sheet HERE
