Video-Intercom Systems
Coaxial Type Apt. Video Monitor Station. White Color. Surface mounts
right on wall surface over steel backplate assembly. Can be optionally
desk mounted.
The Alpha Communications®/Elvox™ 5601/000 apartment
house series monitors are designed to meet virtually any requirement
for low-rise and high-rise apartment video-intercom security.
These attractive monitors surface mount right onto the wall, by
means of a steel backplate (supplied) or over an optional flush
steel backbox with plaster ring (IH358 with IH357). All 5601/000
monitors feature a crystal clear 4.50" (114.3mm) black and white
monitor (measured diagonally), electronic tone signaling, heavy
duty coiled cord, momentary door release button, monitor activation
button, contrast control and amplified handset with electret microphone,
providing simultaneous Talk and Listen functions. When combined
with our vandal-resistant lobby entry stations and model 6680
amplifier (and related accessories), the 5601/000 monitors are
part of a complete building security system.
|

5601/000
|
FEATURES
4.50" (diagonal) Crystal Clear Black & White video screen
Convenient Duplex Voice Operation
Easy Surface Wall Installation using Steel Wall Plate
Quick Wall Plate Connect/Disconnect
Clear Voice Fidelity using Amplified Handset
Rugged and Reliable. Simple to Operate
Pleasant Electronic Call Tone Signal from Entrance Panel(s)
Low profile flush monitor protrudes only 3.50" from wall
Monitors may activated with built-in Monitor Button
Works with a Variety of Aluminum and Stainless Steel Lobby Entry
Panels
SPECIFICATIONS
| Dimensions: |
All 5601/000 monitors are 8.75"W (222mm) x 8.00"H (203mm)
x 3.50"D (89mm). |
| All dimensions shown are outside
dimensions, less the coiled cord. |
| Handset: |
Duplex Handset with Electret Microphone and heavy duty
coiled cord. |
| Finish: |
High Impact ABS Plastic, Soft White color with Black Imprinting.
|
| Controls: |
Door Release Button, Monitor Button, Contrast/Brightness
Control, 2 auxiliary switches. |
| Video Tube: |
4.50" (114.3mm) High Brightness Black and White Tube (measured
diagonally). |
| Options: |
Model IH358 flush double gang electrical box, used with
model IH357 flush mount plaster ring. |
|
Video-Intercom Systems
Non-Coaxial Apt. Video Monitor Station. White Color. Surface mounts
right on wall surface over steel backplate assembly. Can be optionally
desk mounted.
The Alpha Communications®/Elvox™ 5661/000 apartment
house series monitors are designed to replace existing 5-wire
apartment intercoms, using the same wiring, without the need for
coaxial riser wires!! These attractive monitors surface mount
right onto the wall, by means of asteel backplate (supplied),
or can be mounted onto one of our adaptor plates, to cover existing
oversized flush backboxes.
All 5661/000 monitors feature a crystal clear 4.50" (114.3mm)
black and white monitor (measured diagonally), electronic tone
signaling, heavy duty coiled cord, momentary door release button,
monitor activation button, contrast control and amplified handset
with electret microphone, providing simultaneous Talk and Listen
functions. When combined with our vandal-resistant lobby entry
stations and model 6568/117 amplifier (and related accessories),
the 5661/000 monitors are part of a complete building security
system.
|

5661/000
|
FEATURES
Works on existing 5-wire Apt. Intercom wiring, without the need
for any coaxial riser wiring!
4.50" (diagonal) Crystal Clear Black & White video screen
Convenient Duplex Voice Operation
Easy Surface Wall Installation using Steel Wall Plate
Quick Wall Plate Connect/Disconnect
Clear Voice Fidelity using Amplified Handset
Rugged and Reliable. Simple to Operate
Pleasant Electronic Call Tone Signal from Entrance Panel(s)
Low profile flush monitor protrudes only 3.50" from wall
Works with a Variety of Aluminum and Stainless Steel Lobby Entry
Panels
SPECIFICATIONS
| Dimensions: |
All 5661/000 monitors are 8.75"W (222mm) x 8.00"H (203mm)
x 3.50"D (89mm). |
| All dimensions shown are outside
dimensions, less the coiled cord. |
| Handset: |
Duplex Handset with Electret Microphone and heavy duty
coiled cord. |
| Finish: |
High Impact ABS Plastic, Soft White color with Black Imprinting.
|
| Controls: |
Door Release Button, Monitor Button, Contrast/Brightness
Control, 2 auxiliary switches. |
| Video Tube: |
4.50" (114.3mm) High Brightness Black and White Tube (measured
diagonally). |
| Options: |
Model IH358 flush double gang electrical box, used with
model IH357 flush mount plaster ring. |
|
Video-Intercom Systems
Coaxial Type Apt. Video Monitor Station. White Color. Surface mounts
right on wall over steel backplate assembly. Built-in Electronic
Call Tone Signal.

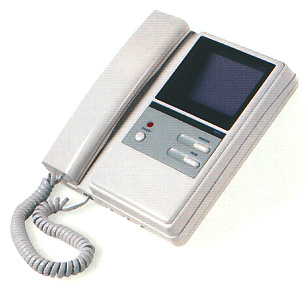

The Alpha Communications®/Tektone® VM104 apartment
house series monitors are designed to meet virtually any requirement
for low-rise and high-rise apartment video-intercom security.
These attractive monitors surface mount right onto the wall, by
means of a steel backplate (supplied) or over an optional flush
steel backbox with plaster ring (IH358 with IH357).
All VM104 monitors feature a crystal clear 3.75" (95mm) black
and white flat screen monitor (measured diagonally), electronic
tone signaling, 6 foot coiled cord, momentary door release button,
monitor activation button, power-on LED, contrast control and
amplified Duplex handset, providing simultaneous Talk and Listen
functions.
When combined with our vandal-resistant lobby entry stations and
model PK314A amplifier (and related accessories), the VM104 monitors
are part of a complete building security system.
|

VM104
|
FEATURES
3.75" (diagonal) Crystal Clear Black & White video screen
Convenient Duplex Voice Operation
Easy Surface Wall Installation using Steel Backplate
Eavesdrop Privacy
Clear Voice Fidelity using Amplified Handset
Rugged and Reliable. Simple to Operate
Pleasant Electronic Tone Signaling from Entrance Panel
Low profile surface monitor protrudes only 2.38" from wall
Monitors may activated with built-in Monitor Button
Works with a Variety of Aluminum and Stainless Steel Lobby Entry
Panels
SPECIFICATIONS
| Dimensions: |
All VM104 monitors are 8.25"W (210mm) x 7.38"H (187mm)
x 2.38"D (60mm). |
| All dimensions shown are outside
dimensions, less the coiled cord. |
| Handset: |
Amplified Duplex Handset with six foot coiled cord. |
| Finish: |
High Impact ABS Plastic, Soft White color with Black Imprinting. |
| Controls: |
Door Release Button, Monitor Button, Contrast Control,
Power-On LED, Standby switch. |
| Video Tube: |
3.75" (95mm) Flat Screen Black and White Tube (measured
diagonally). |
| Options: |
Model IH358 flush double gang electrical box, used with
model IH357 flush mount plaster ring. |
|
Video-Intercom Systems
Coaxial Type Apt. Video Monitor Station. White Color. Built-in Electric
Buzzer Signal or optional Alphatone Chime Signal. Can be desk mounted
with optional adaptor.
The Alpha Communications®/S.T.R.™ VMH25AWH (apartment
house) series monitors are designed to meet virtually any requirement
for video-intercom security. These attractive monitors are surface
mounted right on the wall (without any backbox required). Monitors
can be changed to desk mount with the addition of a model TZ25WH
desk adaptor. For new construction applications, where a rough-in
box is required, these monitors may be mounted over the optional
model VBB flush housing. All VMH25A series monitors feature a
crystal clear 4.0" black and white flat screen monitor (measured
diagonally), textured finish handset (to minimize scratches and
fingerprints), electric buzzer signaling (adjustable), heavy duty
coiled cord with strain relief and two (2) momentary button switches.
These switches can be used for door release or other signaling
functions, depending upon system configuration. Front mounted
controls for brightness, contrast and horizontal hold, make these
monitors easy to adjust to your exact viewing requirements. With
the addition of a low-cost model R2007 Alphatone™ chime adaptor,
you can easily change the electric buzzer to a modern warble chime
tone sound (field replaceable).
|

VMH25AWH
|
FEATURES
4.0" (diagonal) Crystal Clear Black & White video screen
Convenient Duplex Voice Operation
Easy Installation (surface or desk)
Clear Voice Fidelity using Electret Condenser Microphones
Rugged and Reliable. Simple to Operate
Monitor features quick disconnect wire harness
Low profile monitor protrudes only 2.25" from wall
Monitors may be used with HT2006 multi-button handsets
No flush housing required
SPECIFICATIONS
| Dimensions: |
All VMH25A series monitors are 8.63"W (220mm) x 8.75"H
(223mm) x 2.25"D (58mm). All dimensions shown are outside
dimensions for the surface type monitor+handset, less the
coiled cord. |
| Receiver: |
50mm round, 45 ohms, Model HK1. |
| Microphone: |
Electret Condenser Type. MK1 series. |
| Push Buttons: |
(1) with Door Opener (KEY) symbol and (1) spare (Red Dot). |
| Flush Box: |
Model VBB. 7.13"W (182mm) x 4.38"H (112mm) x 2.75"D (70mm)
wall opening. Optional for new construction or other rough-in
applications. |
| Desk Adaptor:: |
Model TZ25WH (White). Optional. |
|
Video-Intercom Systems
Coaxial Type Apt. Video Monitor Station. White Color. Built-in Electric
Buzzer Signal or optional Alphatone Chime Signal. Can be desk mounted
with optional adaptor.
The Alpha Communications®/S.T.R.™ VMH25WH (residential/commercial)
series monitors are designed to meet virtually any requirement
for video-intercom security.
These attractive monitors are surface mounted right on the wall
(without any backbox required). Monitors can be changed to desk
mount with the addition of a model TZ25WH desk adaptor. For new
construction applications, where a rough-in box is required, these
monitors may be mounted over the optional model VBB flush housing.
All VMH25 series monitors feature a crystal clear 4.0" black and
white flat screen monitor (measured diagonally), textured finish
handset (to minimize scratches and fingerprints), electric buzzer
signaling (adjustable), heavy duty coiled cord with strain relief
and two (2) momentary button switches. These switches can be used
for door release or other signaling functions, depending upon
system configuration. A convenient 'ON' button enables you to
activate the monitor, on demand, without waiting to be called
from an entrance station.
Front mounted controls for brightness, contrast and horizontal
hold, make these monitors easy to adjust to your exact viewing
requirements.
With the addition of a low-cost Model R2007 Alphatone™ chime adaptor,
you can easily change the electric buzzer to a modern warble chime
tone sound (field replaceable).
|

VMH25WH
|
FEATURES
4.0" (diagonal) Crystal Clear Black & White video screen
Convenient Duplex Voice Operation
Easy Installation (surface or desk)
Clear Voice Fidelity using Electret Condenser Microphones
Rugged and Reliable. Simple to Operate
Monitor features quick disconnect wire harness
Low profile monitor protrudes only 2.25" from wall
Monitors may be used with HT2006 multi-button handsets
No flush housing required
SPECIFICATIONS
| Dimensions: |
All VMH25 series monitors are 8.63"W (220mm) x 8.75"H
(223mm) x 2.25"D (58mm). All dimensions shown are outside
dimensions for the surface type monitor+handset, less the
coiled cord. |
| Receiver: |
50mm round, 45 ohms, Model HK1. |
| Microphone: |
Electret Condenser Type. MK1 series. |
| Push Buttons: |
(1) with Door Opener (KEY) symbol and (1) spare (Red Dot).
Video 'ON' button. |
| Flush Box: |
Model VBB. 7.13"W (182mm) x 4.38"H (112mm) x 2.75"D (70mm)
wall opening. Optional for new construction or other rough-in
applications. |
| Desk Adaptor: |
Model TZ25WH (White). Optional. |
|
|
WE
SHIP NATIONWIDE

We Accept Purchase Orders
In addition to all the major credit cards we accept purchase orders from Fortune
1000 corporations, educational institutions, and government agencies.
All purchase order terms are Net 30 days. Please fax your purchase order to
(718) 259-3294
New Products | cctv systems | Burglar
Alarms | Fire Alarms | CCTV
| Motion Detectors | Contacts
| Sirens | Locks | Alarm
Systems
Batteries | Wireless
| Intercoms | Central Vacuum
| Home Automation | Audio
Speakers | Structured Wiring | Tools | Security Lighting | Links | Home
|
